Automatic Axial Insertion Solution for Stable THT Production

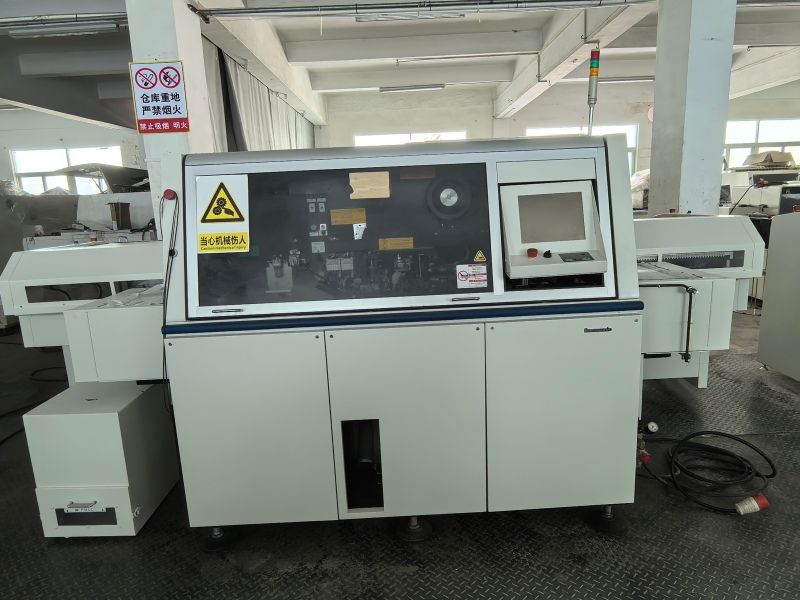

The Panasonic AV131 is a dedicated automatic axial component insertion system developed for Through Hole Technology (THT) processing in modern electronics manufacturing. It is important to define this machine correctly: AV131 is not a Panasonic SMT placement machine and should not be confused with CM or NPM series equipment. Instead, it is a specialized Panasonic Automatic Insertion Machine built for high-speed axial component insertion on printed circuit boards within a DIP Production Line.

For PCB assembly factories handling mixed-technology products, consistent through-hole insertion remains critical to final product reliability. The AV131 addresses this requirement by automating the insertion of taped axial lead components and jumper wires, reducing dependence on manual labor while supporting repeatable production quality. In practical factory use, this helps manufacturers keep pace with output targets without sacrificing insertion accuracy or board handling stability.

Designed for Axial Lead Components

As a Panasonic AV131 Axial Inserter, this equipment is intended for components commonly found in conventional THT assembly, including resistors, diodes, cylindrical ceramic capacitors, and jumper wires supplied in taped format. That makes it a highly suitable Axial Component Inserter for product categories where through-hole parts are still essential, such as power supplies, industrial controllers, instrumentation boards, and many forms of power electronics.

Its supported insertion directions of 0°, 90°, 180°, and 270° provide flexibility when board layouts require different lead orientations. Combined with a component pitch range of 5–26mm and PCB compatibility from 50 × 50mm to 508 × 381mm, the AV131 can fit into a wide range of Electronic Component Insertion workflows, from compact control boards to larger industrial assemblies.

Why the AV131 Remains Valuable in PCB Assembly Equipment Planning

Many electronics manufacturers continue to rely on DIP and THT processes even in facilities that also run SMT lines. In these environments, production efficiency often depends on choosing the right machine for each process stage. The Panasonic AV131 Inserter is valuable because it focuses specifically on axial through-hole parts rather than trying to serve as a general-purpose placement platform. This process specialization is what gives it long-term relevance in SMT and DIP Production Equipment planning.

• Automatic insertion speed of 0.12 seconds per component for improved throughput
• Stable handling of taped axial components used in standardized THT production
• Support for jumper wire insertion in automated board assembly processes
• Broad PCB size range for flexible line integration
• Multi-direction insertion capability for practical layout adaptation

Typical Application Scenarios

The AV131 is well suited to manufacturers that need dependable Panasonic Through Hole Insertion Equipment for repetitive, production-scale assembly tasks. It is commonly considered for:

1. Through-hole PCB assembly lines processing axial components in volume
2. DIP Production Line setups that combine automatic insertion with downstream soldering
3. Power electronics manufacturing where resistors, diodes, and jumper wires remain standard
4. Industrial electronics production requiring stable insertion quality across multiple board types
5. EMS manufacturers balancing cost control, output efficiency, and process consistency

Who Benefits Most

This Electronic Component Insertion Machine is especially relevant for PCB assembly factories looking to reduce manual insertion bottlenecks, production engineers responsible for line efficiency, and used equipment buyers who need proven Panasonic PCB Assembly Equipment for established THT processes. For EMS providers, the machine offers a practical way to maintain repeatable quality across customer programs that still specify axial through-hole components.

A Practical Choice for Used Equipment Buyers

Interest in the Used Panasonic Insertion Machine market remains strong because many factories already operate mature DIP manufacturing workflows and prefer equipment with a known process profile. The AV131 fits that demand well. Its role is clearly defined, its component scope is familiar to engineers, and its application in axial insertion is straightforward. For buyers evaluating pre-owned Panasonic Automatic Insertion Machine options, a machine like the AV131 can be an efficient addition when the process requirement is stable axial insertion rather than SMT placement.

Why Source from SMT MALLS

SMT MALLS has been serving the global electronics manufacturing industry since 2009, supplying complete SMT and DIP Production Equipment solutions as well as original spare parts support. With 17 years of industry experience and more than 200 full production lines delivered across Europe, South America, and Asia, we understand what buyers need when selecting used or refurbished insertion equipment: verified condition, technical transparency, and responsive support.

Our operating principle, "Investigation before Quotation," helps reduce sourcing risk. Every machine and spare part is reviewed carefully, with test videos and technical confirmation provided before shipment. For customers considering the Panasonic AV131 as part of a THT automation project, this approach supports more confident purchasing decisions and helps avoid uncertainty around machine status, compatibility, and delivery readiness.

If your factory is building or upgrading a DIP Production Line and needs reliable Panasonic Through Hole Insertion Equipment, the AV131 remains a practical and production-focused solution. It delivers the core advantages manufacturers expect from dedicated axial insertion automation: speed, consistency, and suitability for real-world through-hole PCB assembly.
