Professional Selective Soldering for High-Throughput DIP Manufacturing

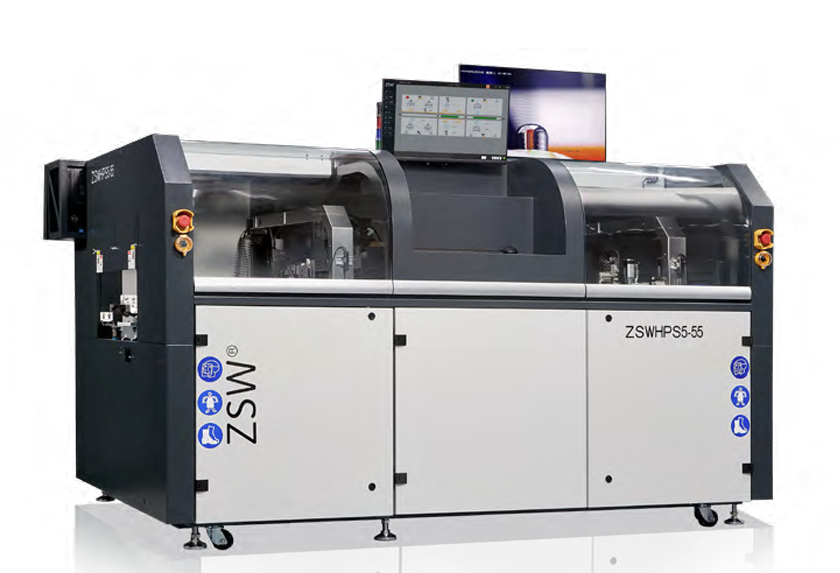

The ZSW HPS5-55 is an advanced 5-Module Soldering System developed for manufacturers that need higher output, better process stability, and tighter control in demanding through-hole assembly. As a modern Selective Soldering Equipment platform from Zhuoshengwei, it is built to address one of the most common bottlenecks in automated DIP production: limited soldering capacity when product mix becomes more complex and board designs become denser.

In many factories, conventional selective soldering platforms perform well on standard jobs but begin to slow the line when handling multilayer PCBAs, high thermal mass assemblies, or programs that require extended preheating and multiple soldering steps. The ZSW ZSWHPS5-55 solves this issue through its enhanced five-module architecture, allowing users to configure additional preheating capacity or dual-soldering stations to keep boards moving efficiently without sacrificing solder joint quality.

Product Specifications

Why the 5-Module Design Matters on DIP Lines

For factories running mixed products, the actual limitation is often not placement speed but post-SMT through-hole soldering capacity. When a line must process connectors, transformers, shielded components, and other thermally challenging parts, the soldering stage can become the point where work-in-progress accumulates. This is where the Zhuoshengwei Selective Soldering approach offers a practical advantage.

The five-module layout is designed to expand process capability without forcing unnecessary compromises. Additional preheating helps stabilize boards with heavier copper or uneven thermal distribution, while dual-soldering capability can reduce waiting time between soldering actions. In real production environments, this means shorter cycle times, better takt matching with upstream SMT processes, and improved overall equipment effectiveness on DIP lines.

Core Benefits for Production Engineers

• Reduces throughput bottlenecks in complex through-hole assembly
• Improves process continuity for PCBAs requiring longer or staged thermal preparation
• Supports both frequent product changeovers and stable long-run production
• Helps maintain soldering consistency on dense boards with tight component spacing

Precision Control for Demanding THT Applications

The machine combines a full-loop CCD vision system with an ultra-stable electromagnetic pump to give operators reliable control over solder position and joint formation. This is especially important in Through Hole Component Soldering, where slight deviations can lead to insufficient fill, bridging, or thermal stress on nearby devices. On high-density boards, stable solder wave behavior is not a convenience; it is essential for repeatable quality.

Real-time parameter monitoring further strengthens process control by allowing the system to maintain consistency in solder wave height and temperature profile. For manufacturers producing safety-critical, industrial, or communications electronics, this level of monitoring supports better repeatability from batch to batch and from shift to shift.

Flexible Enough for HMLV and Scalable Production

One of the strengths of this SMT Assembly Soldering System is its adaptability. Quick nozzle changeovers make it practical for high-mix, low-volume operations where setup efficiency directly affects profitability. At the same time, the architecture is suitable for larger production programs that require stable output over long runs. Compatibility with various lead-free soldering alloys also gives manufacturers more room to align the process with customer standards and regional compliance requirements.

A Strong Fit for Modern DIP Production Equipment Planning

The ZSW HPS5-55 is a strong option for EMS providers, automotive electronics suppliers, industrial control manufacturers, appliance producers, and any factory looking to modernize DIP Production Equipment without losing flexibility. It is particularly valuable where selective soldering must support diverse board designs, tight delivery schedules, and high expectations for first-pass yield.

Typical Use Cases

1. Selective soldering of high-density THT assemblies after SMT reflow
2. Production lines with connectors, relays, terminals, and other complex through-hole components
3. Factories balancing prototype, NPI, and mass-production orders on the same line
4. Operations seeking to relieve post-placement bottlenecks without sacrificing solder quality

Why Source from SMT MALLS

SMT MALLS has supported global electronics manufacturers since 2009, backed by 17 years of practical SMT industry experience and successful delivery of more than 200 full production lines across Europe, South America, and Asia. We understand that when selecting a soldering platform, buyers are not only comparing machine features. They are also evaluating service response, spare parts security, and the credibility of the supplier behind the equipment.

That is why we combine equipment supply with one of the market’s strongest spare parts support systems. With more than 2,100 original parts in stock from major SMT brands, we help factories worldwide minimize downtime through immediate parts availability and fast dispatch. For customers building or upgrading complete lines, this matters just as much as machine performance, because production continuity depends on both.

Our commitment to reliability is equally direct: every machine is supported by full test videos before delivery, and our team provides practical technical support based on real application knowledge. This approach reflects our principle of investigation before quotation, ensuring the recommended solution matches the customer’s process, capacity targets, and board requirements.

What You Gain with SMT MALLS

• 17 years of global SMT experience
• 2100+ original spare parts ready to ship
• Full machine test videos for delivery confidence
• Expert technical support for installation, evaluation, and ongoing production needs

If your goal is to eliminate selective soldering as the limiting step in your line, the ZSW ZSWHPS5-55 offers a practical and production-focused path forward. It brings the capacity advantages of a five-module platform together with the control needed for precise through-hole soldering, making it a reliable choice for manufacturers that need both output and quality.
