Product Specifications

Precision Selective Soldering for Demanding THT Production

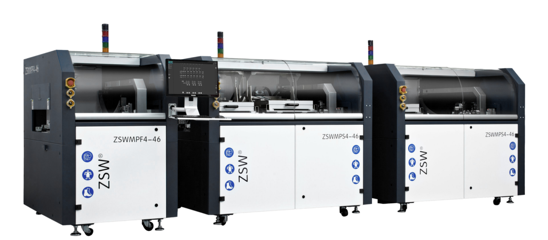

The ZSW ZSWHPS4-44 is a high-performance Selective Soldering Machine developed by ZSW (Zhuoshengwei) for manufacturers that need stable, repeatable, and highly controlled through-hole soldering. Built for modern electronics production, this Through Hole Soldering Machine combines modular process design with precise solder delivery, helping factories handle complex assemblies where conventional wave soldering may not provide the flexibility or protection required for sensitive components.

As part of the Zhuoshengwei high-performance series, the machine integrates four core process modules: flux spraying, multi-stage preheating, and precision soldering units arranged to give better control at every stage of the solder cycle. This structure makes the ZSW HPS4-44 particularly suitable for high-mix PCB environments, assemblies with dense layouts, and applications that demand consistent wetting quality under lead-free conditions.

Why the 4-Module Architecture Matters

In selective soldering, process stability depends on more than the solder pot alone. Flux volume, thermal ramp consistency, board warpage control, and nozzle positioning all influence final joint quality. The modular design of the ZSW HPS4-44 gives process engineers more control over these variables, which is especially valuable in automotive electronics, industrial controls, power modules, communication boards, and other assemblies with strict reliability expectations.

• Dedicated flux spraying supports accurate application on targeted solder points.
• Multi-stage preheating improves thermal uniformity before solder contact.
• Precision soldering units help maintain consistent joint formation across complex THT layouts.
• Modular process separation supports troubleshooting, optimization, and repeatability in mass production.

Engineered for High-Density Through-Hole Assemblies

The machine is specifically engineered for high-density through-hole components, where adjacent parts, tight pad spacing, and mixed-technology board design require exact solder control. By using electromagnetic pump technology together with CCD vision alignment, the ZSW HPS4-44 supports accurate solder delivery and position correction, reducing the risk of bridging, insufficient fill, and misalignment during complex jobs.

For buyers looking for a dependable DIP Soldering Machine or advanced THT Soldering System, this model offers the process confidence needed for quality-focused production lines. Its design supports zero-defect manufacturing goals by improving repeatability across shifts, batches, and board variants, while also helping operators maintain tighter process windows.

Key Functional Advantages

1. Controlled solder accuracy: Electromagnetic pump technology helps deliver stable solder flow for precise point-to-point application.
2. Vision-assisted positioning: CCD alignment improves soldering accuracy for densely populated PCB assemblies.
3. Lead-free readiness: Excellent thermal stability supports modern environmentally compliant manufacturing standards.
4. Continuous production reliability: The system is designed for 24/7 industrial use with low maintenance demand.

Built for Lead-Free Manufacturing

Lead-free processing places higher thermal and process demands on soldering equipment. The ZSW HPS4-44 is fully compatible with lead-free soldering requirements, offering the thermal stability and repeatability needed to maintain joint integrity without sacrificing productivity. For manufacturers serving export markets or operating under strict compliance frameworks, this is an important advantage when evaluating PCB Assembly Equipment for long-term production planning.

Compared with less refined soldering platforms, a well-configured Selective Wave Soldering system allows manufacturers to protect heat-sensitive areas while targeting only the required solder joints. This selective process can improve board quality, reduce rework pressure, and support more flexible product changeovers.

Who Benefits from the ZSW HPS4-44

This equipment is a strong fit for EMS providers, OEM factories, automotive electronics suppliers, industrial electronics manufacturers, and companies upgrading from manual or semi-automatic soldering operations. It is especially relevant for teams that need dependable Zhuoshengwei Soldering solutions with strong process control and practical after-sales support.

• Factories producing mixed SMT and THT boards
• Manufacturers with high-density connector or pin-based assemblies
• Operations requiring long continuous runtime and reduced downtime
• Buyers seeking global service support and spare parts continuity

Why Buy from SMT MALLS

SMT MALLS has been serving the electronics manufacturing industry since 2009 and brings 17 years of practical equipment experience to global buyers. We have delivered more than 200 complete production lines across Europe, South America, and Asia, supporting thousands of factories in building efficient and reliable manufacturing systems. For customers evaluating the ZSW HPS4-44, this means you are not only sourcing a machine, but also working with a team that understands line integration, process validation, and uptime requirements.

Our service principle is simple: Investigation before Quotation. Before we issue a formal offer, we verify machine condition and technical details carefully. We also provide comprehensive test videos so buyers can review the actual equipment status with confidence. This approach helps reduce uncertainty in cross-border purchasing and gives procurement teams, engineers, and factory managers a clearer basis for decision-making.

Long-term uptime also depends on parts availability. SMT MALLS maintains an immediate-delivery inventory of more than 2,100 original spare parts covering major SMT brands and essential production components. For owners of advanced soldering systems, rapid access to spare parts is critical to minimizing unplanned stoppages and protecting output targets. Our stocked support model helps global buyers keep their lines running long after installation.

A Practical Choice for Quality-Driven Production

If your production environment demands precise through-hole soldering, dependable lead-free performance, and industrial-grade stability, the ZSW HPS4-44 is a serious solution worth considering. It combines the process control expected from premium selective soldering equipment with the support advantages of an experienced global supply partner. For manufacturers seeking consistent quality, reduced defects, and reliable lifecycle support, this ZSW platform offers strong value in real-world production.
