Key Specifications

Built for Stable, Highly Compatible SMT Board Handling

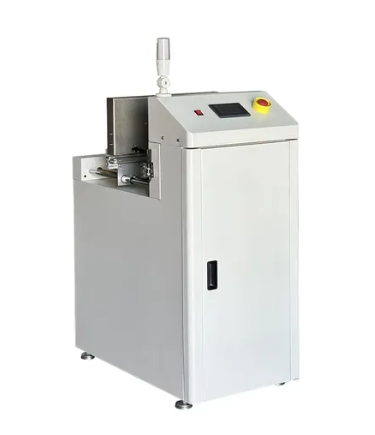

In modern electronics assembly, board transfer is never a minor detail. A poorly matched loading unit can interrupt placement accuracy, increase operator involvement, and create unnecessary stops across the line. This PCB Stacker or destacker is designed to solve that exact problem with a practical, production-focused structure. It works as a flexible SMT Handling Machine for bare board input or output, helping manufacturers maintain orderly PCB circulation while protecting takt time and line balance.

Its biggest advantage is dual-function adaptability. Depending on line layout and process direction, the unit can be configured as a PCB Stacker or a PCB Destacker, allowing one platform to serve different board handling needs across new lines, line upgrades, or mixed-model production. For factories seeking a reliable Automatic PCB Loader alternative that also supports unloading logic, this design offers stronger long-term value and easier deployment planning.

Why PLC Control Matters on a Real SMT Line

At the center of the machine is a high-performance PLC paired with an intuitive HMI LED touch screen. In real production, this is more than a control upgrade. It directly reduces manual intervention by automating board transfer sequences, monitoring machine status in real time, and simplifying operation for technicians and line supervisors. Operators do not need to repeatedly manage board indexing by hand, which helps lower handling errors and improves board turnover efficiency from one process to the next.

For plants running high-mix or long-hour shifts, the benefit is especially clear: the PLC system supports consistent motion logic, predictable transfer timing, and easier line coordination. When paired with upstream and downstream equipment, it helps the machine function as a dependable SMT Buffer Conveyor node rather than an isolated transfer point. The result is smoother material flow, fewer interruptions, and better use of labor on the shop floor.

High Compatibility Means Faster Integration

Compatibility is often what determines whether a peripheral machine adds value quickly or becomes a source of adjustment work. This unit is fully aligned with SMEMA communication standards, making it a true SMEMA Compatible Stacker for integration with printers, conveyors, pick-and-place systems, inspection equipment, and other SMT modules. That level of standardization is essential for factories that need fast installation, stable signal exchange, and predictable synchronization between multiple brands of line equipment.

The lead-screw width adjustment mechanism further strengthens compatibility on the mechanical side. By maintaining smooth and parallel movement, it supports repeatable positioning across a range of PCB formats without the uneven travel that can affect transfer quality. For manufacturers processing bare boards in variable sizes, this helps the machine operate as a dependable Bare Board Destacker or stacker without frequent correction or excessive setup difficulty.

Practical Benefits for Daily Production

• Flexible use as a PCB Stacker or destacker for different line configurations
• PLC-driven automation reduces routine operator involvement
• HMI touch screen improves visibility and simplifies status checks
• SMEMA compatibility supports easy connection with mainstream SMT equipment
• Stable lead-screw width adjustment improves board transfer consistency
• Emergency stop and tri-color tower support safe production control
• Robust structure helps sustain continuous 24/7 manufacturing flow

Selected for Durability, Precision, and Long-Term Line Stability

SMT MALLS has been serving global electronics manufacturers since 2009, with 17 years of delivery experience across Europe, South America, and Asia. That background matters when selecting peripheral handling equipment. In our experience, stacker and destacker performance is defined less by appearance and more by repeatability over time: stable frame rigidity, precise width control, dependable communication, and low-failure operation under continuous production pressure.

That is why our screening standard for this category is strict. We focus on machines that can preserve alignment accuracy, withstand repetitive cycling, and integrate cleanly into automated SMT environments. Every recommendation follows our principle of investigation before quotation, supported by test evidence and technical review. For customers, this means greater confidence that the chosen SMT Handling Machine is not only compatible on paper, but also durable and production-ready in actual factory conditions.

Typical Applications and Ideal Users

This equipment is well suited for EMS providers, consumer electronics manufacturers, automotive electronics plants, LED assembly operations, and industrial control PCB production. It is particularly valuable for facilities that want to reduce manual board loading or unloading, improve consistency between process stages, and maintain line stability during multi-shift operation.

1. Factories building new SMT lines that require standardized board transfer
2. Plants upgrading from manual handling to automated bare board flow
3. Manufacturers seeking a compact Automatic PCB Loader or unloading solution with broader flexibility
4. Operations managers focused on reducing stoppages and improving throughput
5. Engineering teams that need reliable SMEMA-based integration with mixed-brand equipment

For companies that value high compatibility, repeatable handling precision, and stable line performance, this PCB Destacker or stacker offers a practical and scalable answer. It supports smoother board turnover, lowers dependence on manual actions, and helps create the continuous production rhythm that advanced SMT automation demands.
