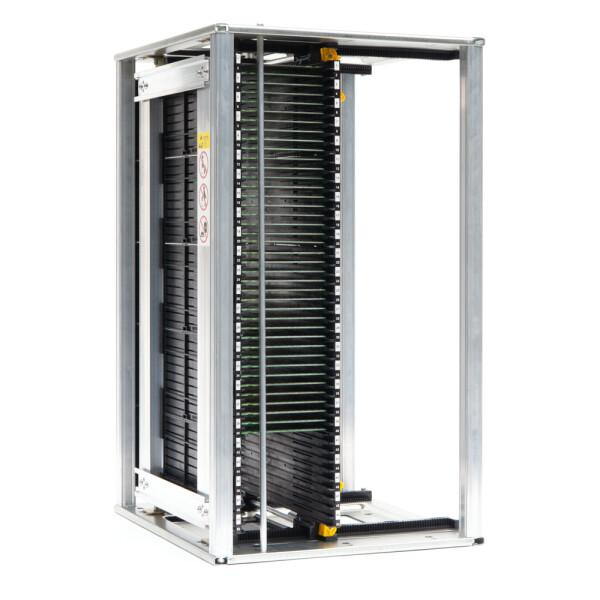

Reliable PCB Magazine Rack with certified ESD protection, adjustable width, and strong aluminum construction. Ideal as an ESD PCB Carrier, SMT Magazine, and PCB Storage Rack for automated SMT lines.

Engineered for Stable ESD Control and Demanding Line Use

In modern SMT production, a magazine rack is not just a simple holder for boards. It directly affects electrostatic safety, machine continuity, transfer stability, and the protection of high-value assemblies. This PCB Magazine is designed as a dependable handling tool for factories that need repeatable performance on automated lines. It combines verified anti-static protection with a rigid frame, making it suitable for both bare board storage and in-process transfer between stations.

As a professional PCB Magazine Rack, it provides a controlled storage environment for sensitive boards that cannot be exposed to uncontrolled static buildup. The surface resistance range of 10^4 to 10^9 Ω supports effective ESD dissipation during handling, storage, and movement through the line. For manufacturers processing dense assemblies, fine-pitch components, or static-sensitive electronics, this level of protection is essential to reducing hidden damage risk before final test.

Why ESD Reliability Matters on Automated SMT Lines

Static control failures often go unnoticed until they become quality issues, field returns, or inconsistent yields. That is why this rack is built as an ESD PCB Carrier with practical line use in mind. It is not only made from anti-static materials, but also selected and verified for stable electrical performance in real manufacturing environments. When boards move between printing, placement, inspection, buffering, and unloading processes, a consistent anti-static path helps protect components from unnecessary exposure.

SMT MALLS applies strict screening standards developed over 17 years of supplying SMT consumables and production support equipment. Every rack is selected with attention to anti-static coefficient consistency and slot flatness, because both factors influence safe transport and smooth machine interaction. This quality-first approach is especially important for factories that rely on continuous production and cannot afford board jams, misalignment, or uncertain ESD behavior.

High Structural Strength for Long-Term Production Stability

A key advantage of this Aluminum PCB Rack is its structural integrity. Premium aluminum alloy side plates and reinforced metal framing help the rack maintain shape under frequent loading and unloading. In automated environments, even slight warping can affect board path alignment, slot accuracy, or equipment synchronization. A stronger frame reduces these risks and supports stable operation over long service cycles.

This robust build also benefits users handling heavier PCB batches or operating in facilities with intensive shift schedules. Compared with weaker alternatives that may deform over time, this PCB Storage Rack is intended to keep slot alignment reliable, preserve parallelism, and reduce maintenance interruptions. The result is better confidence in every transfer step, especially where loader and unloader timing must remain consistent.

Precision Adjustment for Different Board Widths

Board size flexibility is essential in mixed-model production. The synchronized gear and screw mechanism allows quick adjustment to different PCB widths while keeping both sides parallel. This is a practical feature for contract manufacturers and electronics plants that change jobs frequently. Accurate adjustment helps prevent edge stress, tilting, and board jamming, all of which can interrupt line flow and create handling defects.

Because the rack maintains precise alignment during width changes, it performs reliably as an Adjustable Magazine Rack for production teams that need repeatable setup. Operators can adapt the rack efficiently without sacrificing transfer consistency, which is especially valuable when uptime and changeover speed are both priorities.

Designed for Strong Compatibility with Loaders and Unloaders

Compatibility with automation equipment is one of the most important buying factors for any SMT Magazine. This unit features a standardized 50-slot design with 10 mm pitch, allowing secure PCB positioning while supporting integration with major SMT loader and unloader brands. The stable slot geometry helps boards enter and exit smoothly, which is critical for reducing transfer hesitation and minimizing machine alarms.

For production managers, this means easier deployment into existing lines without the uncertainty of poor mechanical fit. For maintenance teams, it means fewer handling-related stoppages. For quality teams, it means more consistent protection of board edges and surfaces throughout the process. These are practical gains that directly support line efficiency.

Thermal Options for Broader Process Use

Not every factory runs the same process conditions, which is why this Anti-static PCB Rack is available in multiple temperature grades up to 120°C or 200°C. This allows users to match the rack to suitable curing, drying, or elevated-temperature work environments without compromising shape retention. Where thermal resistance matters, choosing the correct rack grade helps preserve dimensional stability and handling reliability.

Best-Fit Applications and User Benefits

• SMT production lines requiring stable loader/unloader magazine compatibility
• Electronics manufacturers handling ESD-sensitive components and assemblies
• Contract manufacturers managing frequent PCB size changeovers
• Factories seeking durable magazines for intensive multi-shift use
• Operations needing dependable storage and transfer before, during, or after assembly

1. Protects sensitive boards with controlled ESD performance.
2. Maintains frame strength and flatness under repeated production loads.
3. Improves automated handling with standardized slot design.
4. Reduces jam risk through precise synchronized width adjustment.
5. Supports long-term use with temperature-resistant material options.

Backed by SMT MALLS, a global SMT solutions provider established in 2009, this rack reflects practical industry knowledge built through more than 200 delivered production lines and long-term support for factories across Europe, South America, and Asia. Our principle of investigation before quotation extends to equipment accessories and consumables as well. That means customers receive products selected for actual production suitability, not just catalog specifications.

If your line depends on consistent anti-static control, strong mechanical durability, and smooth interaction with automated loading systems, this PCB Magazine offers a balanced and production-proven solution for daily SMT handling.
