Product Overview

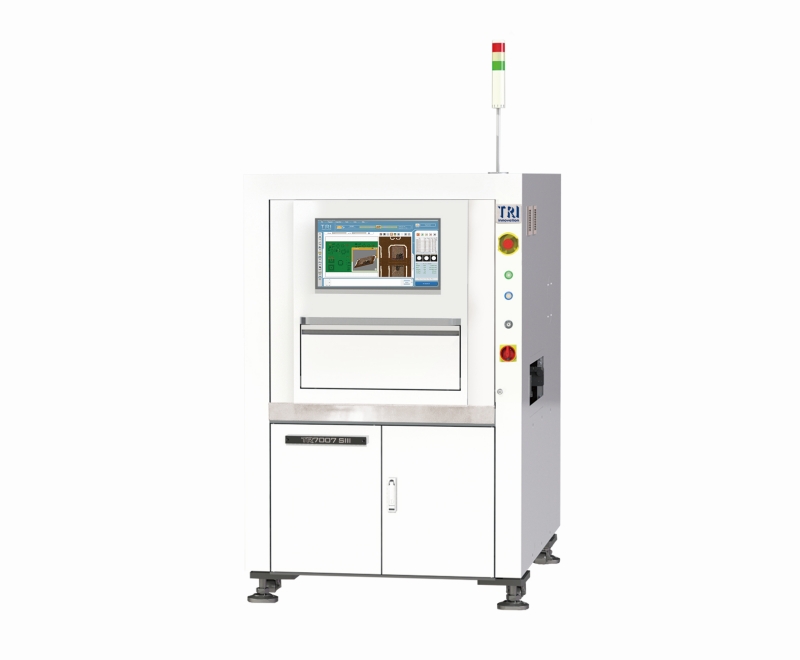

For electronics manufacturers under constant pressure to raise throughput without compromising process control, the TRI TR7007 SIII sets a practical benchmark. Designed for demanding SMT environments, this High Speed 3D SPI platform combines fast inspection, stable motion control, and dependable 3D measurement to help factories maintain print quality at scale. As part of the trusted TR7007 Series, it is especially well suited to high-mix, high-volume assembly operations where every second and every print result matter.

In real production, solder paste printing remains one of the most critical variables affecting downstream yield. Insufficient volume, offset deposits, bridging risk, or poor transfer efficiency can quickly lead to placement errors, tombstoning, rework, and hidden reliability issues. The TRI SPI solution addresses these challenges at the source by delivering accurate and repeatable inspection data fast enough to keep up with modern line takt times. With inspection speed reaching 200cm2/sec SPI performance at 15 μm resolution, the system is built for manufacturers that cannot afford bottlenecks between printing and placement.

Key Features and Production Advantages

Built for speed in mass production

The strongest appeal of the TR7007 SIII is its ability to support true mass production. High-speed inspection is valuable only when it remains useful under daily factory conditions, not just in ideal demonstrations. This system delivers industry-leading throughput while preserving the measurement integrity required for process decisions. For busy SMT lines producing consumer electronics, automotive modules, industrial controls, or communication devices, that balance is essential. A faster SPI stage means less waiting between print verification and pick-and-place, making the machine a strong fit for Mass Production SPI applications.

Mechanical stability that supports repeatability

Inspection accuracy depends heavily on platform stability, especially when motion speed increases. The upgraded mechanical structure of the TR7007 SIII is designed to maintain ultra-high stability even at maximum movement speed. In practical terms, this helps reduce vibration-related deviations and supports more consistent data capture across long production runs. For process engineers and quality teams, stable inspection behavior means greater confidence when making pass/fail decisions and adjusting printer settings based on trend data.

Shadow-free imaging on dense PCB layouts

Modern boards are increasingly dense, leaving less margin for blind spots during inspection. The dual-projection structured light technology used in this system is engineered to eliminate shadows and achieve 100% measurement coverage. This is particularly important for fine-pitch designs, compact assemblies, and crowded solder paste areas where incomplete imaging can hide defects or create false variation. By improving visibility across the full pad pattern, the machine strengthens the reliability of every Solder Paste Inspection cycle.

Reliable 3D data for small components

As component miniaturization continues, inspection systems must deliver meaningful data on extremely small deposits. The TR7007 SIII provides dependable 3D measurement for height, area, and volume, including applications involving 01005 (0402 metric) components. This level of precision helps manufacturers detect print issues before they create expensive downstream defects. Instead of reacting to placement or reflow failures later in the process, teams can intervene earlier, improving first-pass yield and reducing avoidable scrap.

Closed-loop communication for smarter process control

Another major advantage is full M2M connectivity with screen printers. By enabling closed-loop feedback, the system supports real-time optimization of the print process. When SPI data identifies drift or repeatable variation, corrective actions can be communicated back to the printer to stabilize production more quickly. For factories pursuing smarter automation strategies, this capability turns inspection from a passive checkpoint into an active process improvement tool. The result is stronger print consistency, fewer escapes, and more efficient use of operator attention.

Why this matters on a real SMT floor

• Helps prevent print-related defects before placement and reflow
• Supports faster throughput without sacrificing 3D inspection confidence
• Improves line stability on dense and miniaturized PCB assemblies
• Provides actionable data for process engineers and quality managers
• Strengthens yield improvement through printer feedback integration

Who benefits most from this system

The TR7007 SIII is well suited to electronics manufacturers seeking higher inspection capacity and tighter print process control. It is a strong option for OEM factories, EMS providers, and large-scale contract manufacturers running continuous SMT shifts. Production managers benefit from reduced bottlenecks, quality engineers gain more trustworthy inspection data, and maintenance or automation teams can leverage M2M connectivity to build more responsive lines.

1. High-volume SMT factories that need fast, stable inline paste inspection
2. Manufacturers processing dense or fine-feature boards
3. Operations targeting yield improvement through closed-loop printing control
4. Sites producing assemblies with very small components and strict quality targets

Why source from SMT MALLS

Choosing the right inspection platform is only part of a successful investment. Equally important is working with a supplier that understands the realities of factory uptime, verification, and after-sales support. Established in 2009, SMT MALLS is a trusted global provider of one-stop SMT equipment and spare parts solutions. Backed by 17 years of industry expertise, the company has delivered more than 200 full production lines across Europe, South America, and Asia, helping thousands of factories build efficient manufacturing systems.

SMT MALLS is known for its ready-to-ship inventory of over 2,100 original spare parts from leading brands such as ASM, FUJI, YAMAHA, Panasonic, JUKI, and Hanwha. Beyond equipment supply, the company follows a rigorous “Investigation before Quotation” principle. Each machine and spare part is supported by test videos and technical assistance, giving buyers a more transparent and dependable purchasing experience. For manufacturers investing in a TRI TR7007 SIII, that commitment reduces uncertainty and supports faster deployment.

A practical choice for modern print inspection

If your production goals require both speed and control, the TR7007 SIII offers a compelling answer. It combines the throughput expected from a next-generation TRI SPI system with the stable mechanics, full-coverage imaging, and process connectivity needed in advanced SMT manufacturing. For companies evaluating a dependable High Speed 3D SPI solution within the TR7007 Series, this model stands out as a serious tool for improving print quality, protecting downstream processes, and supporting sustainable output growth.
