Product Overview

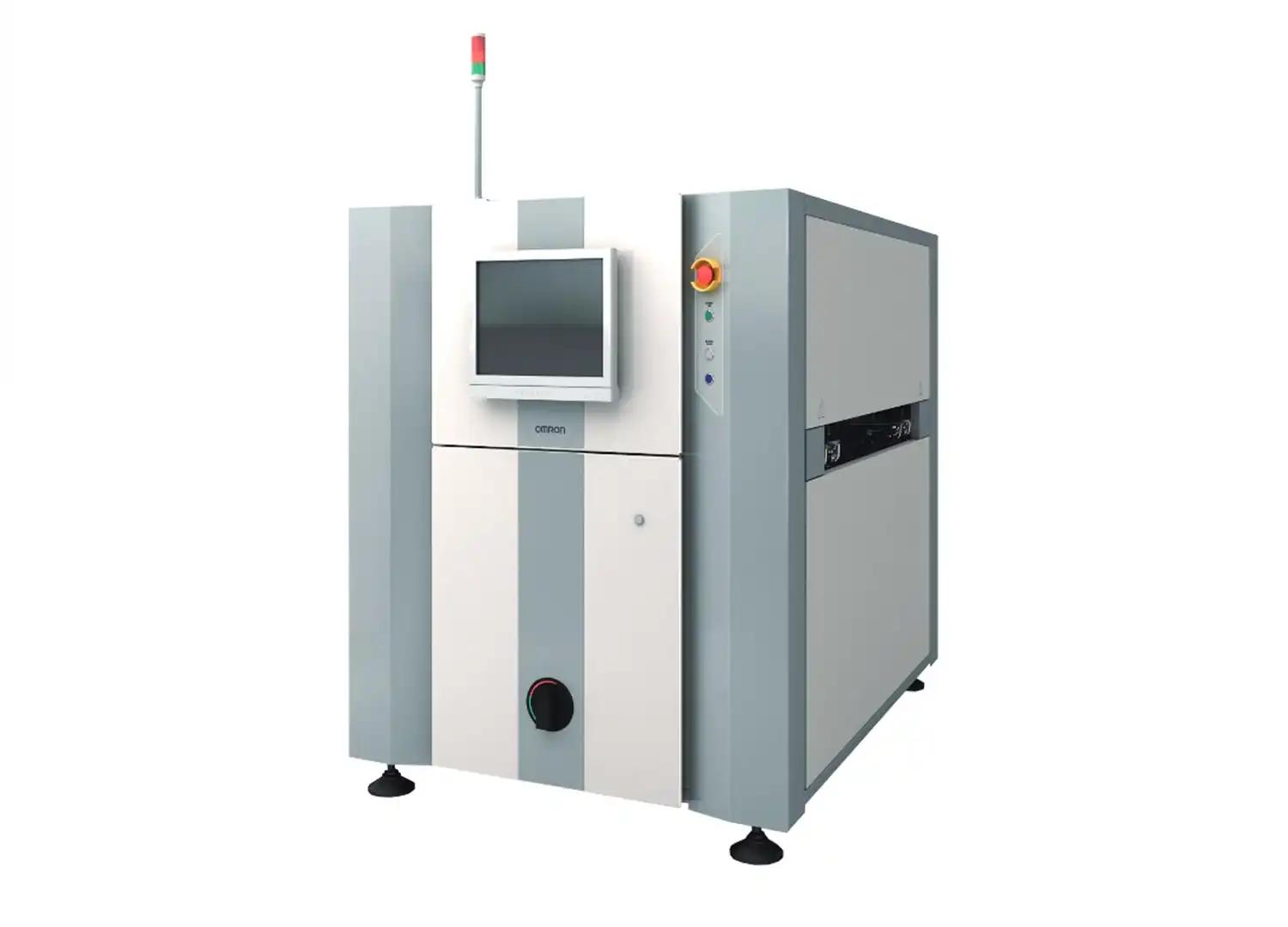

The OMRON VT-S530 is a compact yet highly capable Automated Optical Inspection platform designed for manufacturers that need stable, repeatable defect detection without sacrificing floor space. Built around Omron’s proven inspection architecture, this system is especially valued in demanding SMT environments where missed defects can create costly downstream failures and unnecessary customer risk. For factories focused on zero-escape quality control, the VT-S530 offers a practical balance of advanced 3D reconstruction, dependable decision logic, and production-ready speed.

At the heart of the machine is Omron’s patented 3D-SJI Technology, developed specifically to strengthen solder joint judgment while keeping false calls under tight control. In real production, this matters just as much as raw detection power. An inspection system that catches defects but floods operators with overcalls can slow output, increase review labor, and create inconsistency across shifts. The OMRON VT-S530 addresses that challenge by combining detailed 3D measurement with mature solder joint inspection logic, helping manufacturers identify real process issues while avoiding unnecessary intervention.

Why the VT-S530 Stands Out in SMT Inspection

For electronics producers working with fine-pitch assemblies, mixed component heights, and increasingly strict quality standards, inspection performance must go beyond simple image capture. The VT-S530 uses a 12MP high-resolution camera to support precise 2D imaging and accurate 3D reconstruction. This high-definition imaging foundation allows the system to evaluate solder shape, component presence, polarity, alignment, and other critical assembly conditions with clarity that supports confident pass/fail decisions.

Another major advantage is the unique RGB+White lighting design. This lighting approach improves the visibility of solder fillets and component geometry, which is essential when inspecting reflective surfaces and complex board layouts. By enhancing contrast and feature definition, the system gives process engineers and quality teams a clearer view of what is happening on the board, making root-cause analysis faster and more reliable.

• Zero-escape focused inspection logic: engineered to reduce the chance of missed defects in critical SMT production.
• Low false call performance: helps maintain throughput and reduces manual verification workload.
• 12MP high-speed imaging: supports fine detail capture for both 2D and 3D evaluation.
• RGB+White illumination: improves visualization of solder joints and component contours.
• IPC-based automated criteria: enables more standardized PCB Soldering Inspection across products and shifts.
• Compact footprint: fits more easily into existing SMT lines where space is limited.

Built for Consistent Quality, Not Just Detection

Many manufacturers searching for an Omron 3D AOI solution are not simply comparing specifications—they are trying to solve quality instability. The OMRON VT-S530 is well suited for this task because it aligns advanced hardware with a mature inspection philosophy. Full IPC compliance support allows automated inspection criteria to be structured around recognized industry standards, making quality benchmarks more consistent across operators, product types, and production sites. This is particularly beneficial for EMS providers, automotive electronics suppliers, industrial control manufacturers, and any operation handling high-mix assemblies.

In practical line use, the system supports detection of solder-related and assembly-related defects that can otherwise escape visual review or basic 2D inspection. Because the machine is optimized for real SMT Inspection workflows, it contributes not only to defect capture but also to process feedback. Better defect visibility means better upstream correction, whether the source is printing, placement, reflow, or component variation. That is why the VT-S530 is often considered a quality gate as well as a process improvement tool.

Typical Value for End Users

1. SMT production managers gain more stable outgoing quality with fewer escapes.
2. Quality engineers benefit from clearer defect judgment and reduced false alarm handling.
3. Process engineers receive more actionable inspection feedback for printer, mounter, and reflow optimization.
4. Factory owners improve customer confidence by implementing a robust Automated Optical Inspection step based on recognized standards.

Why Source from SMT MALLS

Choosing the right inspection system is only part of the decision. Equally important is working with a supplier that understands the realities of line integration, equipment condition, spare parts continuity, and technical verification. SMT MALLS has been serving the SMT industry since 2009 and brings 17 years of focused experience in equipment and component supply. Over that time, we have supported more than 200 complete production line deliveries across Europe, South America, and Asia, helping thousands of factories build reliable, efficient manufacturing capability.

Our strength is not limited to equipment trading. We maintain a ready-to-ship inventory of more than 2,100 original spare parts covering major SMT brands, which is a significant advantage for customers planning long-term operation and maintenance. When you invest in a machine such as the VT-S530, supply chain support matters. Fast access to original parts helps reduce downtime risk and supports stable equipment ownership over time.

SMT MALLS also follows a strict “Investigation before Quotation” workflow. That means we do not offer equipment casually or without verification. For the OMRON VT-S530, we can provide full-function running test videos to demonstrate actual machine status before shipment. This is especially important for AOI equipment, where camera integrity, imaging response, and 3D algorithm health directly affect inspection value. Our test materials are intended to give buyers real confidence that the camera system performs correctly and that the 3D inspection capability is functioning as expected.

For buyers evaluating VT-S530 options on the market, this verification step can make a meaningful difference. Instead of relying on general claims, you receive visible proof of operational condition. That approach reflects our commitment to reliability, transparency, and long-term customer trust. If your goal is to strengthen PCB Soldering Inspection, reduce quality escapes, and implement a compact Omron 3D AOI platform with proven inspection logic, the OMRON VT-S530 is a strong solution—and SMT MALLS is prepared to support it with experience, inventory depth, and tested delivery standards.
