Product Overview

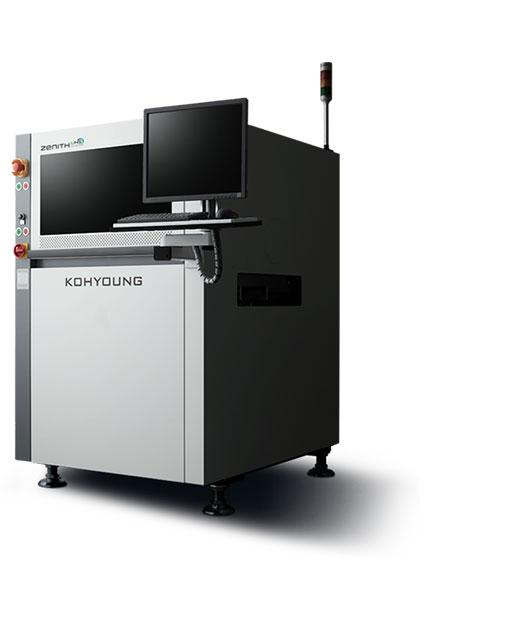

For EMS manufacturers chasing faster takt time without sacrificing inspection confidence, the Koh Young Zenith UHS stands out as a purpose-built solution for output-driven SMT environments. Designed for maximum productivity on high-volume lines, this system answers a common production challenge: how to keep inspection from becoming the bottleneck when placement speeds keep rising. The answer is a platform engineered around speed, capacity, and measurement integrity.

The Zenith UHS is built for factories where every second matters. It delivers approximately twice the throughput of standard 3D AOI platforms while maintaining the measurement quality expected from Koh Young 3D AOI technology. That balance is what makes it especially valuable for large EMS plants, automotive electronics suppliers, consumer electronics production, and any facility running dense boards at high daily volume. When output targets are aggressive, fast inspection only creates value if it remains dependable; this system is designed to do both.

Why Speed Matters More Than Ever

In modern SMT manufacturing, line speed is no longer defined only by the mounter. Inspection performance directly influences overall equipment efficiency, operator workload, repair flow, and shipment stability. A slower AOI can create hidden accumulation points, force line balancing compromises, or reduce the practical advantage of high-speed placement modules. The Koh Young Zenith UHS addresses this issue by helping manufacturers preserve 100% inspection coverage while keeping pace with demanding production rhythm.

This is where UHS AOI becomes more than a machine category. It becomes a production strategy. By reducing inspection cycle time while preserving true 3D analysis, the platform supports higher board output per shift, smoother scheduling, and better use of line investment. For EMS companies serving multiple customers with short lead times, that throughput advantage can translate into faster order turnover and stronger delivery performance.

Core Advantages for High-Volume EMS Factories

• Ultra-fast throughput: Approximately 2x faster than standard 3D AOI systems, helping lines maintain momentum in high-speed assembly environments.
• True 3D at speed: Maintains Koh Young’s recognized 3D measurement capability even at maximum production cycle times.
• Dual-lane ready: Optimized for dual-lane SMT configurations, supporting complete inspection coverage without slowing output.
• Stable continuous operation: Rugged hardware design supports long-term consistency under fast, nonstop production conditions.

These strengths make the system an ideal fit for manufacturers that cannot afford trade-offs between speed and quality control. In practical terms, High Throughput Inspection helps reduce the risk of inspection backlog, especially in facilities where multiple product families run across parallel lines. The machine’s architecture is focused on sustaining speed over time, not simply achieving an impressive short-term benchmark.

Built for Real Production Pressure

Many factories can achieve brief bursts of high output. Fewer can maintain stable inspection quality during continuous, high-speed operation over long production windows. The Koh Young Zenith UHS is intended for exactly that scenario. Its robust hardware design supports repeatable inspection behavior in round-the-clock environments, where vibration resistance, mechanical consistency, and platform durability all matter.

For process engineers and plant managers, this stability has direct value. It supports predictable quality data, more reliable line balancing, and better planning for preventive maintenance. In high-mix, high-volume operations, dependable Fast PCB Inspection also helps downstream teams respond faster to true defects while minimizing production disruption caused by inspection delays.

Ideal Applications

1. Large EMS production sites that need to maximize boards per hour across multiple SMT lines.
2. Dual-lane SMT lines where inspection must keep pace with rapid placement output.
3. High-density PCB production requiring true 3D verification rather than simplified 2D-only inspection logic.
4. Factories under strict delivery pressure where cycle-time efficiency directly affects profitability and customer satisfaction.
5. Operations upgrading legacy AOI capacity to remove inspection bottlenecks without reducing coverage.

SMT MALLS Support for Zenith UHS Buyers

At SMT MALLS, we understand that buyers of advanced AOI platforms are not just comparing specifications. They are evaluating operational risk, output potential, service readiness, and long-term value. Since 2009, our team has supported global SMT manufacturers with equipment and spare parts solutions built on real process knowledge. With deep industry experience, delivery of more than 200 full production lines, and support across Europe, South America, and Asia, we know what high-speed factories expect before they commit to a machine.

Our understanding of the Koh Young Zenith UHS goes beyond surface-level sales information. We focus on machine condition, throughput suitability, and inspection performance verification. To help customers make informed decisions, SMT MALLS can provide a detailed Health Report and high-speed operation test video for this model. These materials give purchasing teams, engineers, and plant managers a clearer view of actual equipment status and running capability before shipment.

This approach reflects our working principle: Investigation before Quotation. We believe inspection equipment should be evaluated with evidence, not assumptions. That is why our support process is designed to reduce uncertainty and strengthen confidence. For buyers seeking a High Speed AOI solution for expansion, line upgrade, or capacity recovery, that technical transparency is a major advantage.

Why Source from SMT MALLS

• Established in 2009 with strong global SMT project experience
• Over 200 full production lines delivered internationally
• Deep familiarity with inspection systems, placement equipment, and line integration needs
• Health Report support for clearer equipment evaluation
• High-speed running test videos to verify real operating performance
• Technical support backed by broad spare parts resources from top SMT brands

If your production goal is simple—more output, faster inspection, and no compromise in 3D verification—the Zenith UHS is a compelling choice. For high-volume EMS factories where every minute of uptime and every unit of capacity counts, this platform is engineered to keep inspection aligned with the pace of modern SMT manufacturing.
