Product Overview

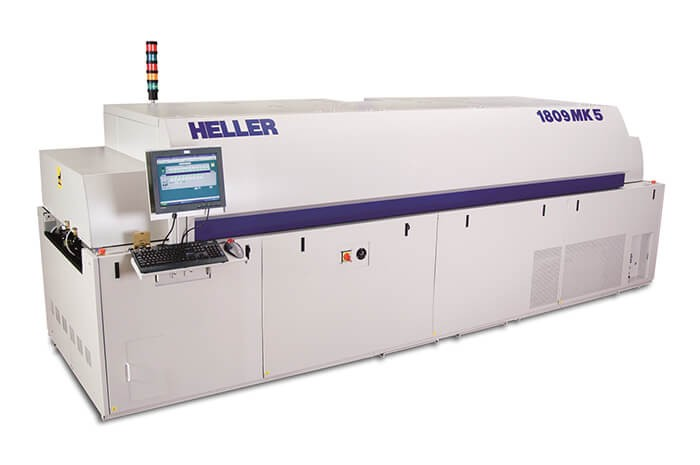

The Heller 1809 MK5 Reflow Oven is a proven solution for manufacturers that need stable thermal performance, repeatable soldering results, and dependable day-to-day output in SMT production. As a Heller SMT Reflow Oven widely used in PCB assembly environments, it is designed to manage the full soldering process with controlled heating and cooling, helping production teams build consistent solder joints across a wide range of electronic assemblies.

In modern SMT lines, reflow stability directly affects product quality, throughput, and process confidence. The 1809 MK5 supports these priorities by providing a controlled thermal profile through the reflow cycle, from preheat and soak to peak reflow and cooling. This process control is essential for minimizing thermal variation, supporting proper paste activation, and promoting uniform wetting during lead-free and conventional soldering applications.

For EMS providers, OEM factories, and electronics manufacturers seeking a reliable SMT soldering oven, this model remains a practical choice because it is known for production stability rather than unnecessary complexity. Whether the goal is routine PCB assembly or more demanding industrial programs, the machine is suited to operations where solder joint consistency and line reliability matter every shift.

How It Supports the Reflow Process

The Heller 1809 MK5 is built to support controlled reflow soldering in environments where process repeatability is critical. During SMT assembly, even small deviations in temperature ramp rate, soak time, peak exposure, or cooling can affect solder spread, component stress, and long-term field reliability. A stable reflow platform helps reduce these risks by keeping the thermal profile within a predictable window.

This is especially important in lead-free production, where tighter thermal process control is often required to achieve proper intermetallic formation without exposing components and boards to unnecessary heat load. As a lead free reflow system used in electronics manufacturing equipment setups, the 1809 MK5 helps maintain a balanced soldering process that supports both product quality and operational consistency.

Key Process Advantages

• Controlled heating and cooling for repeatable thermal profile execution
• Stable support for solder joint formation in SMT manufacturing
• Suitable for continuous PCB assembly production
• Helps manufacturers maintain reliable soldering quality across production runs
• Practical fit for lead-free soldering process requirements

Application Areas

This PCB assembly equipment is used across multiple electronics sectors where stable reflow results are essential to production performance and downstream reliability. Its application value comes from process consistency, not exaggerated claims, which is why it continues to be relevant in established SMT factories.

Typical Industries and Production Use

1. PCB Assembly
   Ideal for SMT lines producing assembled circuit boards that require consistent heating, proper solder paste reflow, and dependable joint quality.
2. EMS Manufacturing
   Well suited to contract manufacturers handling diverse product mixes and requiring a reflow stage that can support controlled process changeovers.
3. Automotive Electronics
   Applicable in automotive electronics production environments where stable soldering outcomes are important for quality-focused manufacturing systems.
4. Industrial Electronics Production
   Supports production lines building industrial control, power, and interface boards that depend on repeatable SMT soldering performance.

Who Benefits from This Equipment

The Heller 1809 MK5 is suitable for manufacturers that value process discipline, equipment reliability, and production continuity. It is a strong match for factories looking for a Heller SMT Reflow Oven that can serve as a dependable part of a complete SMT line without overstating capability beyond verified information.

• PCB assemblers focused on stable output and lower process variation
• EMS companies balancing product diversity with line efficiency
• Manufacturers transitioning or operating in lead-free environments
• Operations teams seeking trusted electronics manufacturing equipment with established industry usage
• Buyers evaluating SMT reflow machine options for long-term production support

Why Source from SMT MALLS

SMT MALLS, established in 2009, is a global one-stop supplier of SMT equipment and spare parts solutions. With 17 years of industry experience and more than 200 full production lines delivered across Europe, South America, and Asia, the company supports factories that need dependable equipment sourcing backed by practical technical understanding.

A major advantage of working with SMT MALLS is supply readiness. The company maintains over 2,100 original spare parts in stock from major brands such as ASM, FUJI, YAMAHA, Panasonic, JUKI, and Hanwha. This strong inventory position helps customers reduce downtime and maintain continuity across pick-and-place, printing, inspection, and reflow-related operations.

SMT MALLS also follows the principle of Investigation before Quotation. Every equipment or spare parts transaction is supported by verification steps, including test videos and technical support, to help customers confirm suitability and performance before shipment. For buyers of PCB assembly equipment, this approach adds an important layer of confidence and traceability to the procurement process.

Service Value from SMT MALLS

• Global SMT equipment sourcing experience since 2009
• Support for complete production lines and factory upgrades
• Large ready-to-ship spare parts inventory
• Technical verification with test videos
• Focus on reliable delivery and reduced downtime risk

Procurement Considerations

When evaluating a SMT soldering oven for production use, buyers typically focus on process stability, support availability, and long-term operating confidence. The Heller 1809 MK5 addresses these practical requirements by offering a widely used platform for controlled reflow soldering in electronics manufacturing. For factories where thermal profile consistency is directly tied to yield and product quality, this model remains a sensible option.

If your team is reviewing a Heller 1809 MK5 Reflow Oven for PCB assembly, EMS manufacturing, automotive electronics, or industrial electronics production, SMT MALLS can provide professional support based on verified equipment handling and real industry supply experience.
