Advanced 3D SPI Built for Precision, Speed, and Smart Factory Control

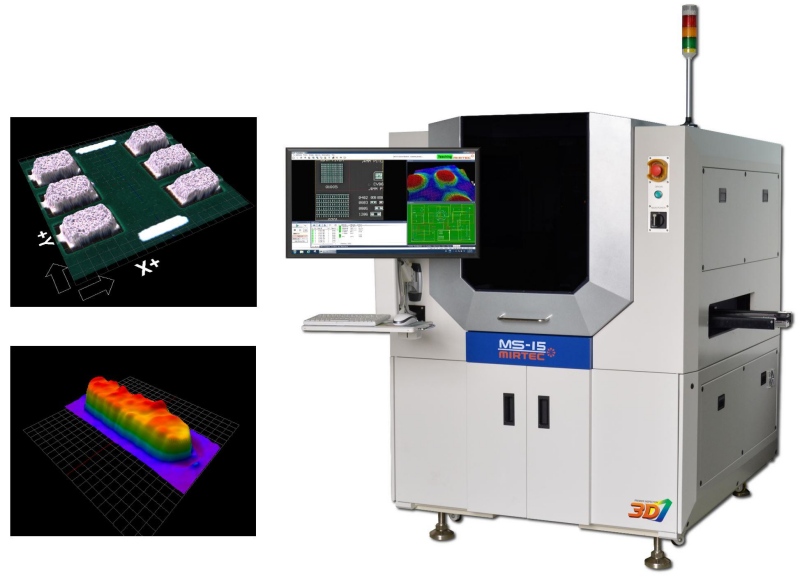

The MIFTEC MS-15 represents the top tier of modern solder paste inspection for electronics manufacturers that cannot afford compromise between speed and measurement quality. Designed for demanding SMT environments, this platform brings together ultra-high-resolution imaging, full 3D inspection capability, and direct process feedback to support stable output on today’s fastest lines. For manufacturers comparing the MIRTEC MS-15, MS-15, or an Advanced MS-15 Series solution, the biggest differentiator is clear: image quality and actionable process control must work together in real production, not just on paper.

At the center of this machine is its elite 25 Mega Pixel CoaXPress vision architecture. In practical terms, that means faster capture of much richer inspection data, helping process engineers detect paste volume variation, insufficient deposits, bridging risk, offset, and shape irregularities with greater confidence. A true 25MP SPI Machine gives high-density assemblies the measurement clarity they demand, especially when miniaturized components and fine-pitch designs leave almost no margin for error. On modern boards, image fidelity is not a luxury; it is the basis for reliable process decisions.

Why the 25MP Platform Matters

Many production teams focus on takt time first, but line efficiency depends just as much on preventing escapes and reducing false calls. The MIFTEC MS-15 addresses both sides. Its high-resolution camera system captures detailed 3D information at very high speed, making it suitable for continuous inline use where throughput pressure is constant. This is why the machine is well positioned for manufacturers searching for High-Throughput SPI without sacrificing measurement integrity.

• 25MP image acquisition supports highly detailed solder paste analysis.
• CoaXPress architecture enables rapid data transfer for fast cycle response.
• 100% 3D inspection helps maintain control on densely populated PCB designs.
• Stable inspection performance supports consistent yield improvement.

Equally important is the machine’s 8-projection digital Moire technology. This multi-projection approach is engineered to reduce shadow-related measurement limitations, delivering shadow-free 3D profilometry across challenging board topographies. For engineers working with complex layouts, tall neighboring structures, or tightly packed pads, this capability helps maintain inspection completeness where conventional methods can struggle. In short, this Mirtec 3D SPI class performance is designed for real-world PCB complexity.

Deep Support for Smart Factory Operation

The MIFTEC MS-15 is not only an inspection station; it is a process control node. Its direct link capability with screen printers allows the SPI system to support automatic cleaning cycle triggers and alignment correction actions. This is a major advantage for smart factories focused on closed-loop quality management. Instead of waiting for repeated defects to accumulate, the line can respond earlier to print drift and contamination trends, reducing waste, avoiding downstream rework, and improving overall equipment effectiveness.

1. Inspect solder paste deposits in full 3D immediately after printing.
2. Detect process deviation before it impacts placement and reflow quality.
3. Send actionable feedback to the printer for cleaning or alignment correction.
4. Stabilize production with less operator dependency and faster intervention.

This level of line integration makes the system especially valuable for EMS providers, automotive electronics plants, industrial control manufacturers, medical PCB assemblers, and any facility moving toward data-driven manufacturing. Where uptime, traceability, and repeatability matter, advanced SMT Solder Inspection is no longer a standalone quality gate; it is part of the production strategy.

Built for 24/7 Factory Demands

High-end inspection equipment must remain stable under nonstop operating conditions. The ruggedized construction of the MIFTEC MS-15 is intended to support maintenance-friendly, long-duration use in busy manufacturing environments. Enhanced mechanical stability contributes to consistent measurement performance and dependable inline operation, which is critical for factories that run around the clock and cannot tolerate unnecessary interruptions.

Why Buy from SMT MALLS

Choosing the right machine is only part of the investment decision. Long-term equipment value depends heavily on supply assurance, technical verification, and spare parts availability. SMT MALLS, established in 2009, brings 17 years of global SMT delivery experience and has supported more than 200 full production lines across Europe, South America, and Asia. That background gives customers practical confidence when sourcing premium inspection equipment and support for sophisticated SMT operations.

For customers evaluating high-end MIRTEC-related equipment, SMT MALLS offers a strong operational advantage through its stock of more than 2,100 original spare parts covering leading SMT brands and critical production systems. This deep inventory support is particularly meaningful for buyers who need responsive service continuity, reduced downtime risk, and dependable access to parts for advanced inspection platforms. Every quotation follows the company’s “Investigation before Quotation” principle, and equipment support is reinforced with test videos and technical assistance to help ensure delivery confidence.

If your factory requires a premium 3D SPI platform with top-class 25MP imaging, smart printer connectivity, and production-ready durability, the MIFTEC MS-15 is a compelling choice. It is built for manufacturers that need accurate 3D data, faster process correction, and stronger control across high-speed SMT lines.
