Product Overview

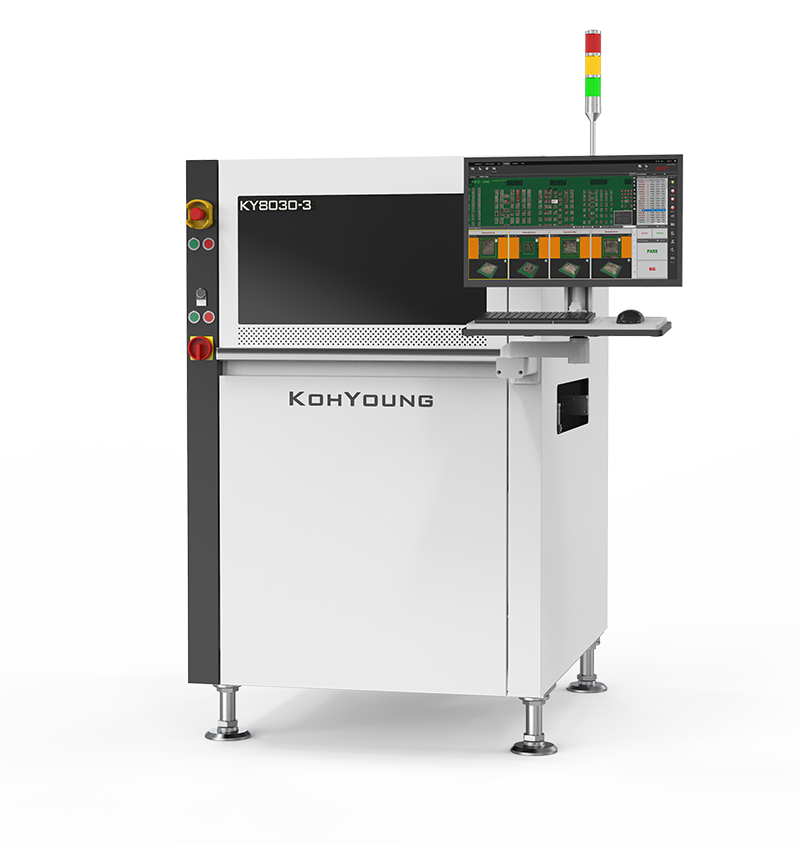

The Koh Young KY8030-3 represents the highest-performance platform in the 8030 family, engineered for manufacturers that need speed, measurement confidence, and reliable factory-wide connectivity in one system. As an Advanced 3D SPI solution, it is especially well suited to today’s challenging SMT environments where ultra-miniature components, tighter process windows, and traceable quality control are no longer optional. For production teams pushing toward stable yields on 01005 assemblies, the KY8030 III offers the imaging quality and analytical depth needed to detect solder paste variation before defects migrate downstream.

What sets the KY8030-3 apart is not a single specification, but how its core technologies work together in real production. High-resolution telecentric optics support exceptionally clear 3D data capture on ultra-fine pads. Improved throughput helps the machine keep pace with fast modern lines without sacrificing inspection integrity. Real-time Z-axis compensation supports stable measurement on thin or flexible boards where warpage can distort results. At the same time, enhanced algorithms reduce false calls and unnecessary operator intervention, allowing engineers to focus on true process issues rather than noise.

Why the Koh Young KY8030-3 Stands Out

• Built for 01005 process control: The system’s superior imaging performance helps identify subtle solder paste volume, height, and shape deviations on extremely small pads.
• Highest speed in the series: Designed to support high-output SMT lines where inspection capacity must match placement and printing throughput.
• Smart factory ready: Integrated SPC tools and KSMART connectivity enable deeper data visibility, trend analysis, and process optimization.
• Stable on difficult PCB conditions: Advanced warpage compensation improves measurement consistency on thin, flexible, or deformation-prone boards.
• Lower false rejects: Improved algorithm performance helps move closer to zero false calls, reducing unnecessary stops and manual review.

Designed for Fine-Pitch and 01005 Production

In many factories, the move toward 01005 components exposes the limitations of older inspection platforms. Tiny pads leave almost no margin for print variation, and even a small inconsistency in paste deposit can affect placement stability, solder joint formation, and long-term reliability. This is where Koh Young SPI technology continues to earn trust across advanced electronics manufacturing. The High Precision SPI capability of the Koh Young KY8030-3 gives process engineers sharper visibility into the real shape of each deposit, helping them act earlier on stencil wear, support pin setup, squeegee pressure, and print alignment issues.

For users producing mobile devices, automotive electronics, medical assemblies, industrial controls, or compact communication modules, this level of 3D inspection is not simply about pass/fail judgment. It is about controlling process drift before it becomes scrap, rework, or customer risk. The KY8030 III is therefore a strong fit for manufacturers upgrading from conventional SPI platforms to a more data-driven and yield-focused inspection strategy.

Smart Factory Value Beyond Inspection

A modern SPI system should do more than measure solder paste. It should also support decision-making across the line. As a Smart Factory SPI platform, the KY8030-3 integrates SPC functionality and KSMART support to help production and quality teams monitor trends, identify recurring process shifts, and connect inspection results with broader continuous improvement efforts. This is particularly valuable in factories seeking tighter closed-loop control between printer setup, SPI feedback, and downstream quality outcomes.

When implemented correctly, these capabilities can shorten troubleshooting time, improve first-pass yield, and strengthen documentation for quality audits. For multi-line operations or manufacturers serving regulated industries, the machine’s data utility becomes just as important as its hardware performance.

Typical Applications

1. High-mix or high-volume SMT lines requiring dependable 3D solder paste inspection
2. Factories producing boards with 01005, fine-pitch, or ultra-dense component layouts
3. Operations working with thin PCBs, flexible substrates, or warpage-sensitive assemblies
4. Manufacturers building smart factory workflows based on SPC and connected process data
5. Teams aiming to reduce false calls, operator workload, and hidden print-related defects

Supply Confidence from SMT MALLS

Choosing the right machine is only part of the investment. Choosing the right supplier is what protects uptime and long-term value. SMT MALLS has been serving the global SMT industry since 2009 and brings deep experience from more than 200 full production lines delivered across Europe, South America, and Asia. This practical line-level understanding matters when evaluating equipment such as the Koh Young KY8030-3, because real buyers need more than a generic sales promise. They need transparent condition reporting, technical verification, and dependable support after shipment.

For this reason, we follow our strict principle of Investigation before Quotation. Before delivery, we can provide a detailed equipment health assessment report together with high-definition test videos, allowing customers to review measurement performance, operating condition, and key functional status in advance. This evidence-based approach helps demonstrate that the offered unit is in near-new condition, giving buyers stronger confidence in both asset quality and production readiness.

SMT MALLS also supports long-term ownership with an extensive ready-to-ship stock of more than 2,100 original spare parts covering major SMT brands. For customers planning to deploy a Koh Young SPI solution into an active factory, this spare parts capability reduces downtime risk and simplifies maintenance planning. It also aligns well with our broader experience supporting complete lines, from placement and printing to AOI/SPI inspection systems and critical consumable or board-level parts.

Who Benefits Most

• SMT manufacturers scaling up advanced miniaturized product assembly
• Process engineers who need clearer 3D data for stencil print optimization
• Quality teams pursuing stronger traceability and lower false reject rates
• Factory managers building connected, efficiency-focused production systems
• Buyers seeking verified used equipment with transparent testing and support

If your operation requires a fast, stable, and analytics-ready SPI platform for next-generation SMT manufacturing, the Koh Young KY8030-3 is a compelling choice. With proven capability for 01005 inspection, advanced warpage control, reduced false calls, and strong smart factory integration, it delivers meaningful value where process precision directly affects yield and customer quality. Backed by SMT MALLS’ global project experience, spare parts readiness, and verifiable machine condition reporting, this system is positioned to support both immediate production goals and longer-term manufacturing upgrades.
